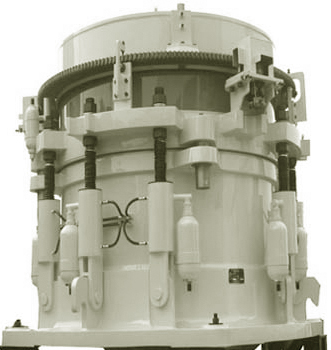

HYDRO CONES
DESCRIPTION
HY-A BC-1005
HY-A DZ-1021
Cone Diameter(mm)
1036
Feeder Opening (mm)
54
215
Max Feeder Size(mm)
45
185
Discharge Setting (mm)
6-16
25-38
Capacity(t/h)
80-180
230-300
Motor Model Power (KW) Speed (rpm) Voltage(V)
Y355M-4
220
1480
380
Main Machine Weight(t)
18.2
Overall Dimension(cm)
235×220×210
Lubrication Station (l/min)
125
Hydraulic Station (MPa)
14
Weight (KG)
Cone
14800
Frame
3000
2060
Eccentric Bushing
1060
Counter Assembly
490
Socket Assembly
110
Bowl Assembly
3400
